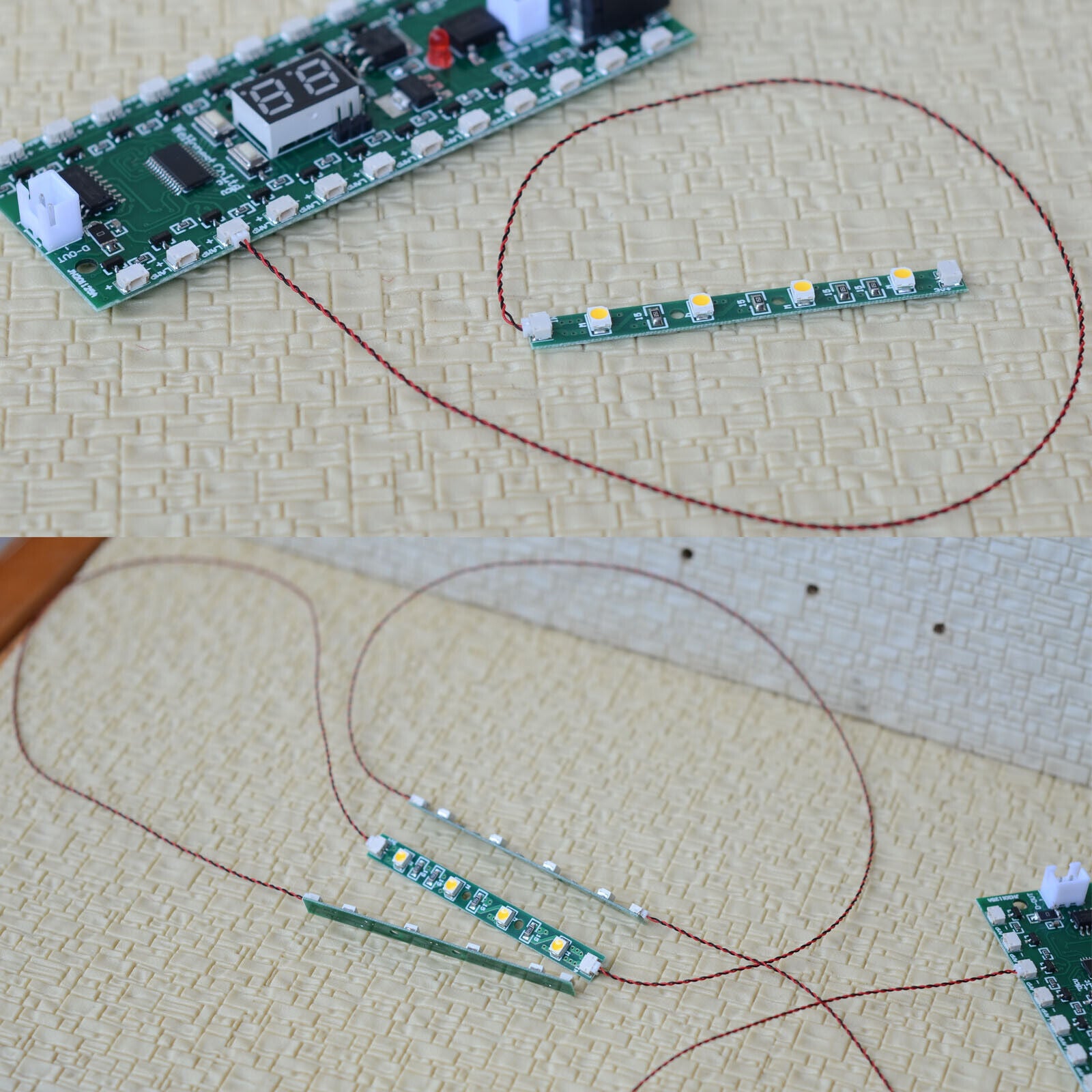

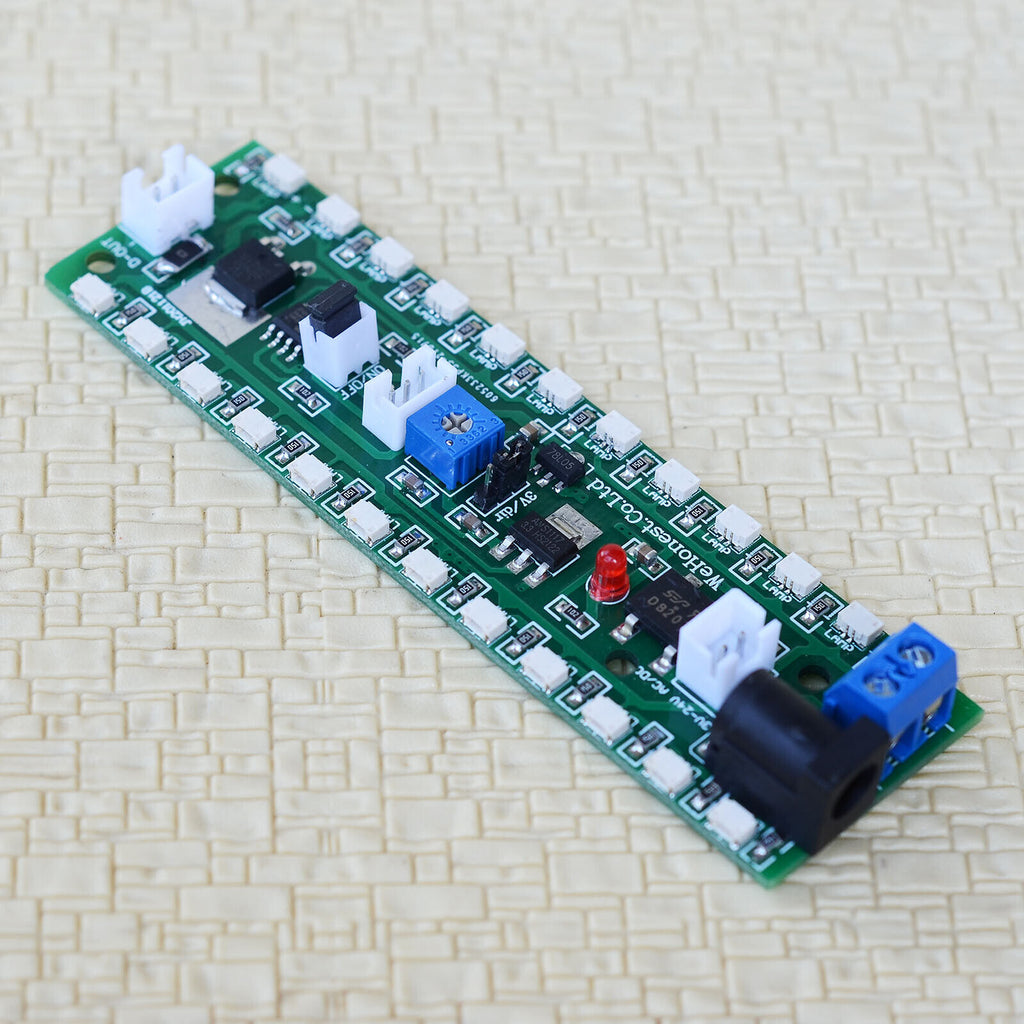

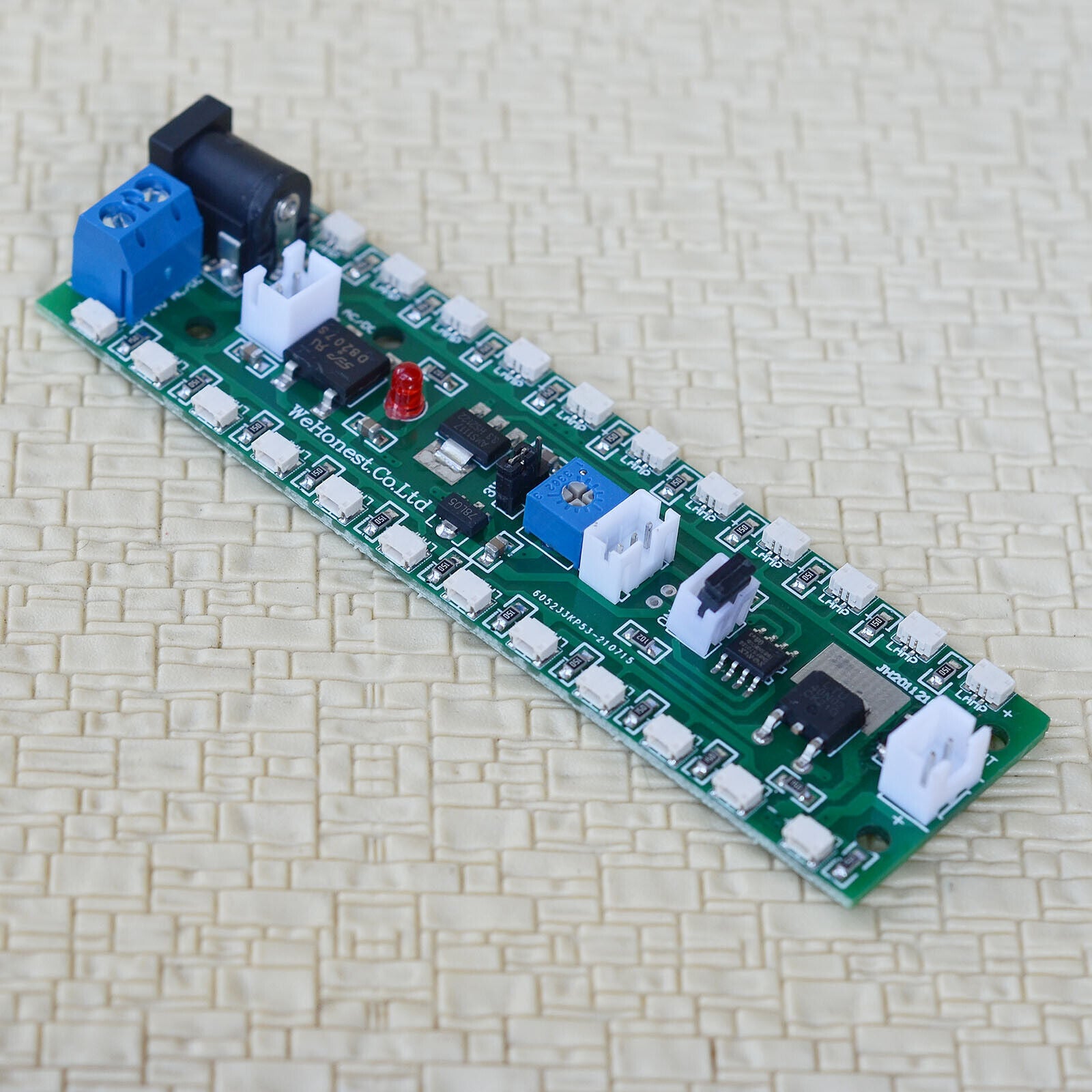

1 x plug and play power distribution board distributor 3V street light hub DB08

Features:

• 100% Brand new and high quality.

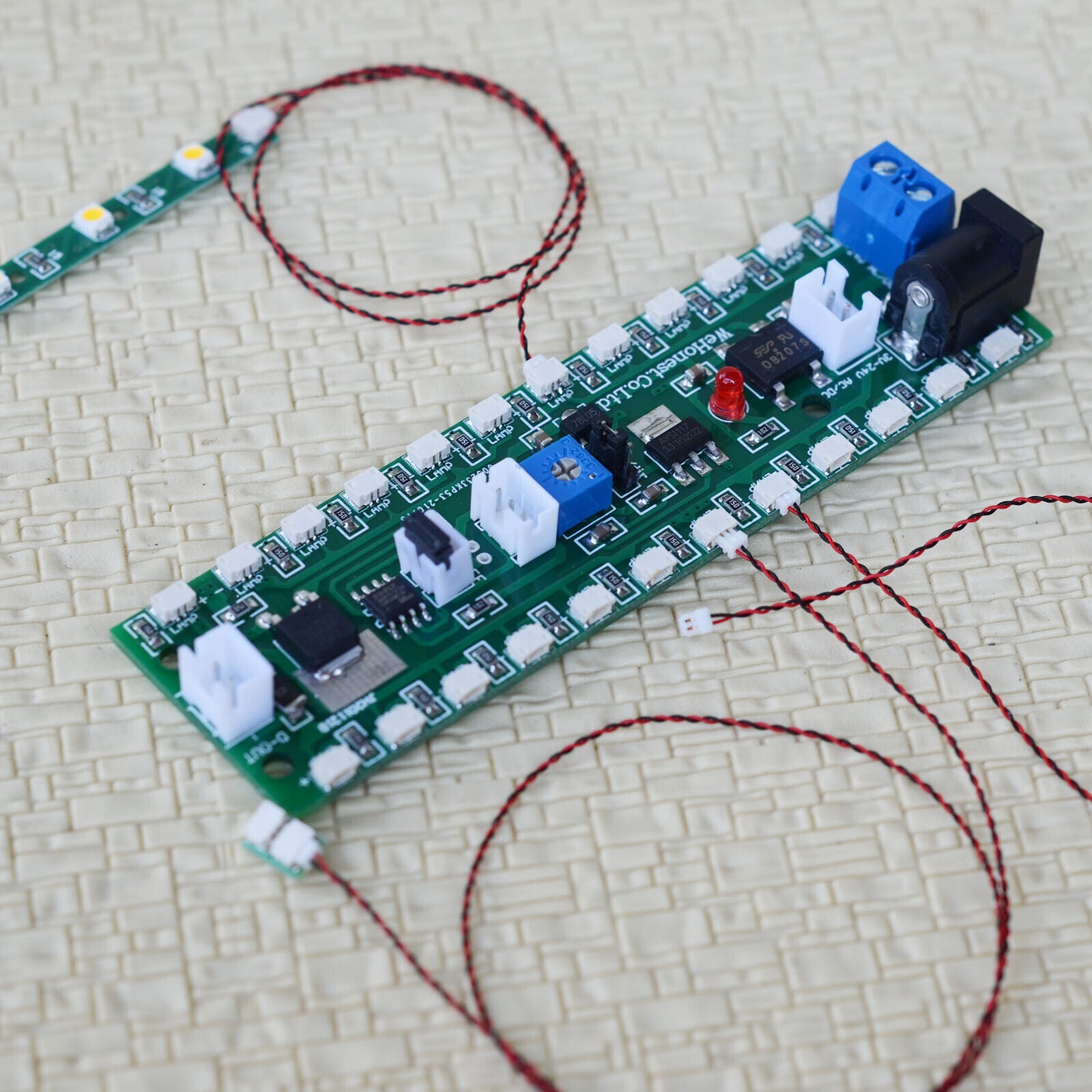

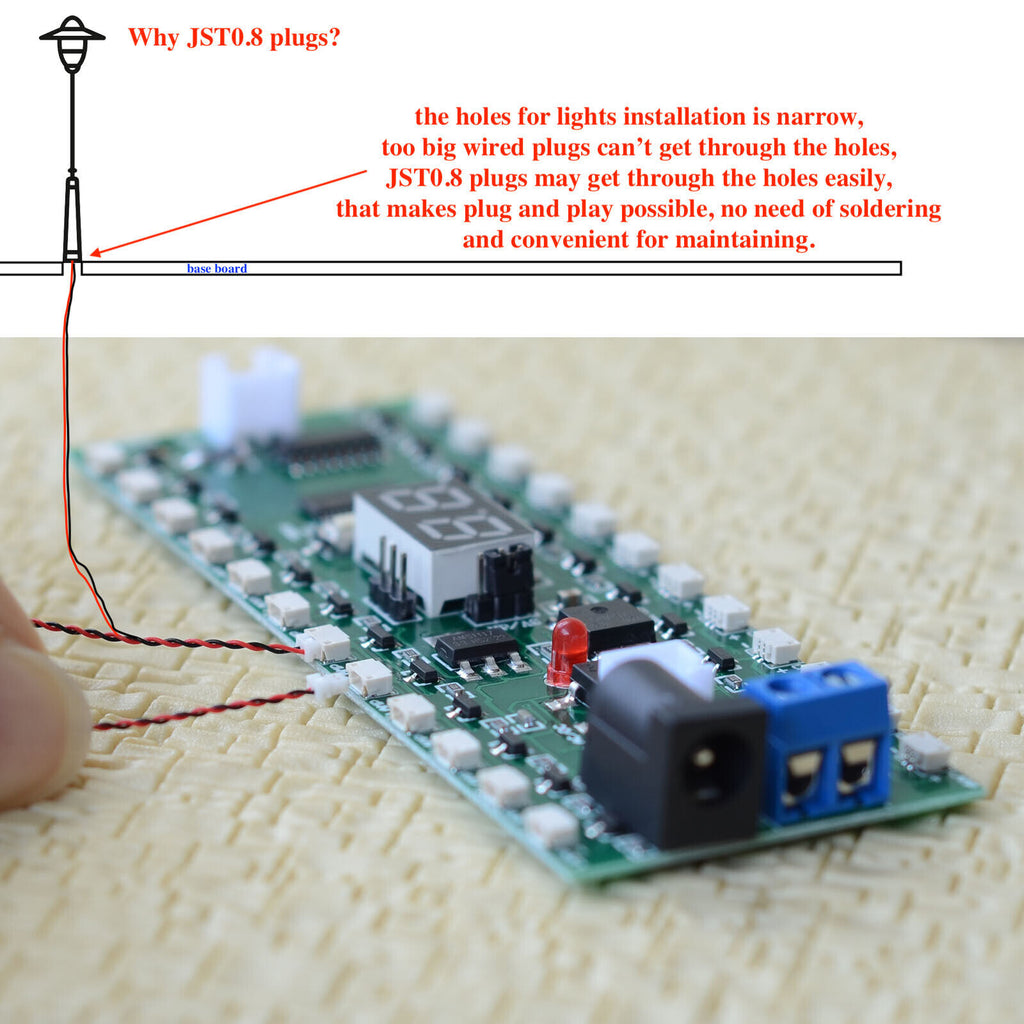

• use JST0.8 connectors which may get through small holes for lights installation, plug and play possible, no soldering under baseboard needed.

Specifications:

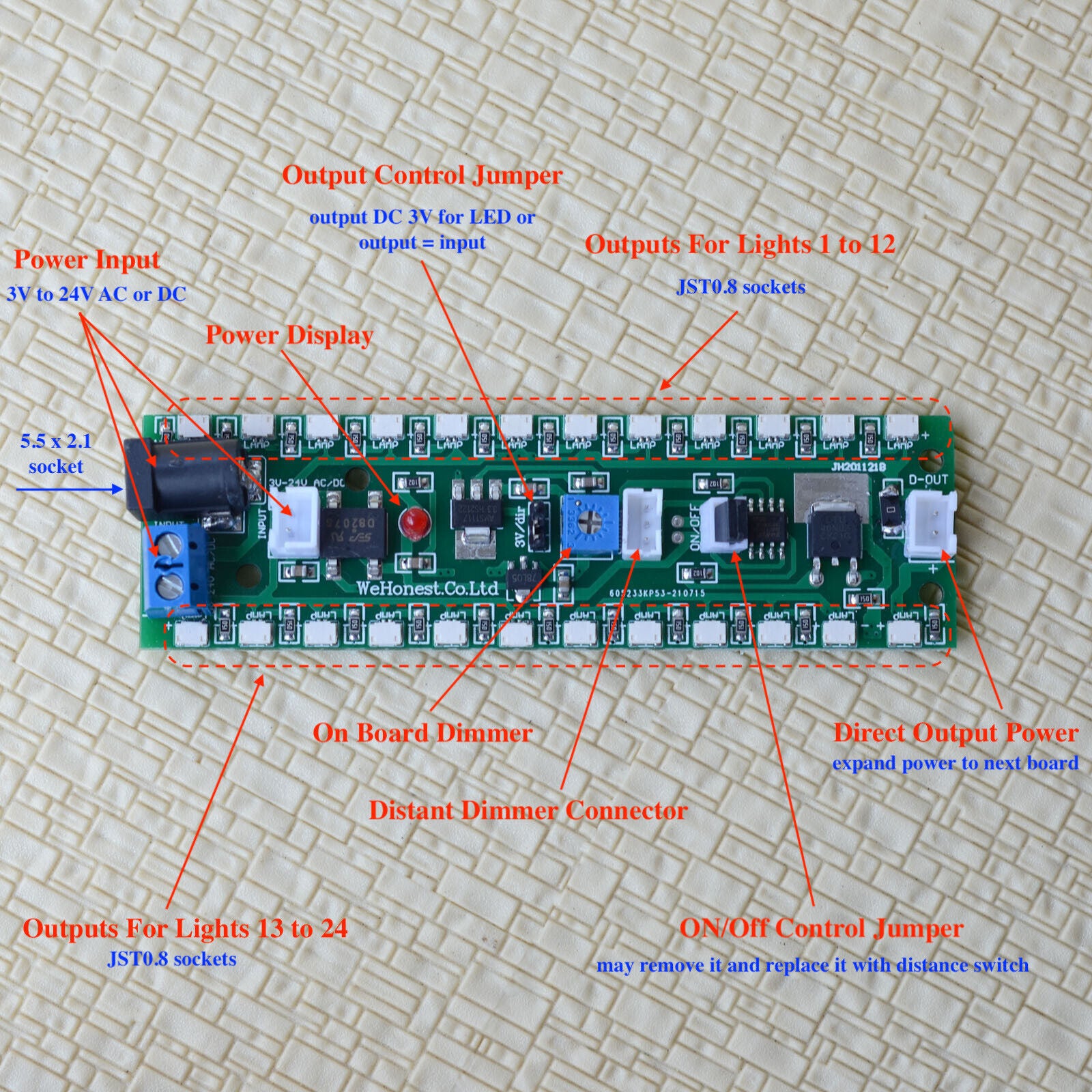

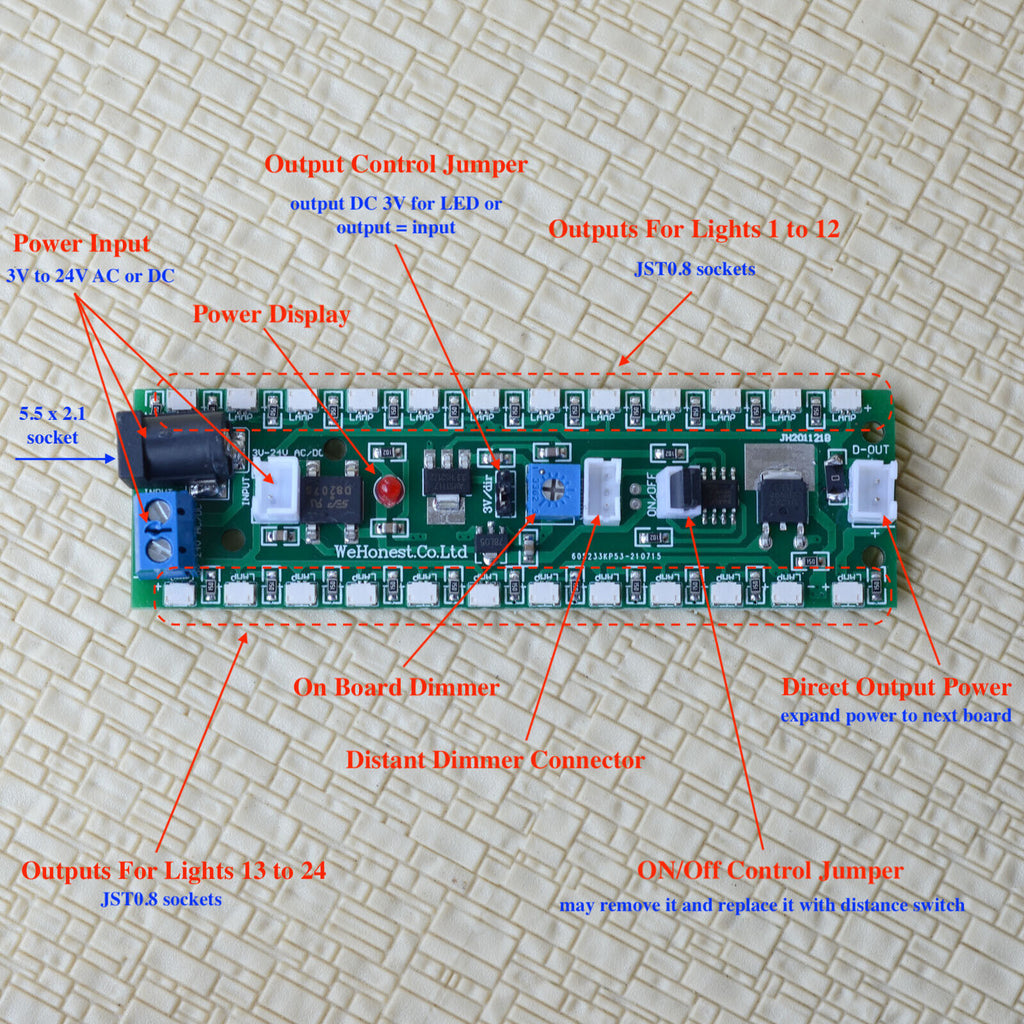

• • Apply correct voltage and current to LED lights and bulb lights automatically, no need of resistors soldering;
  •

  • with on board dimmers and remote dimmer connectors, can adjust light brightness from far away;
  •

  • one board may support up to 24 lights, and easy expansion;
  •

  • wide input voltage ( 3V to 24V AC or DC ), no input current limit;
  •

  • output 3V DC for LED lights or direct output for bulb lights; output current self adapt;
  •

  • support bulb type lights also, support LEDs, SMD LEDs or SMD/LED lights.
  •

  • convenient for lights distribution.

Specifications:


• Brand: WeHonest Model.

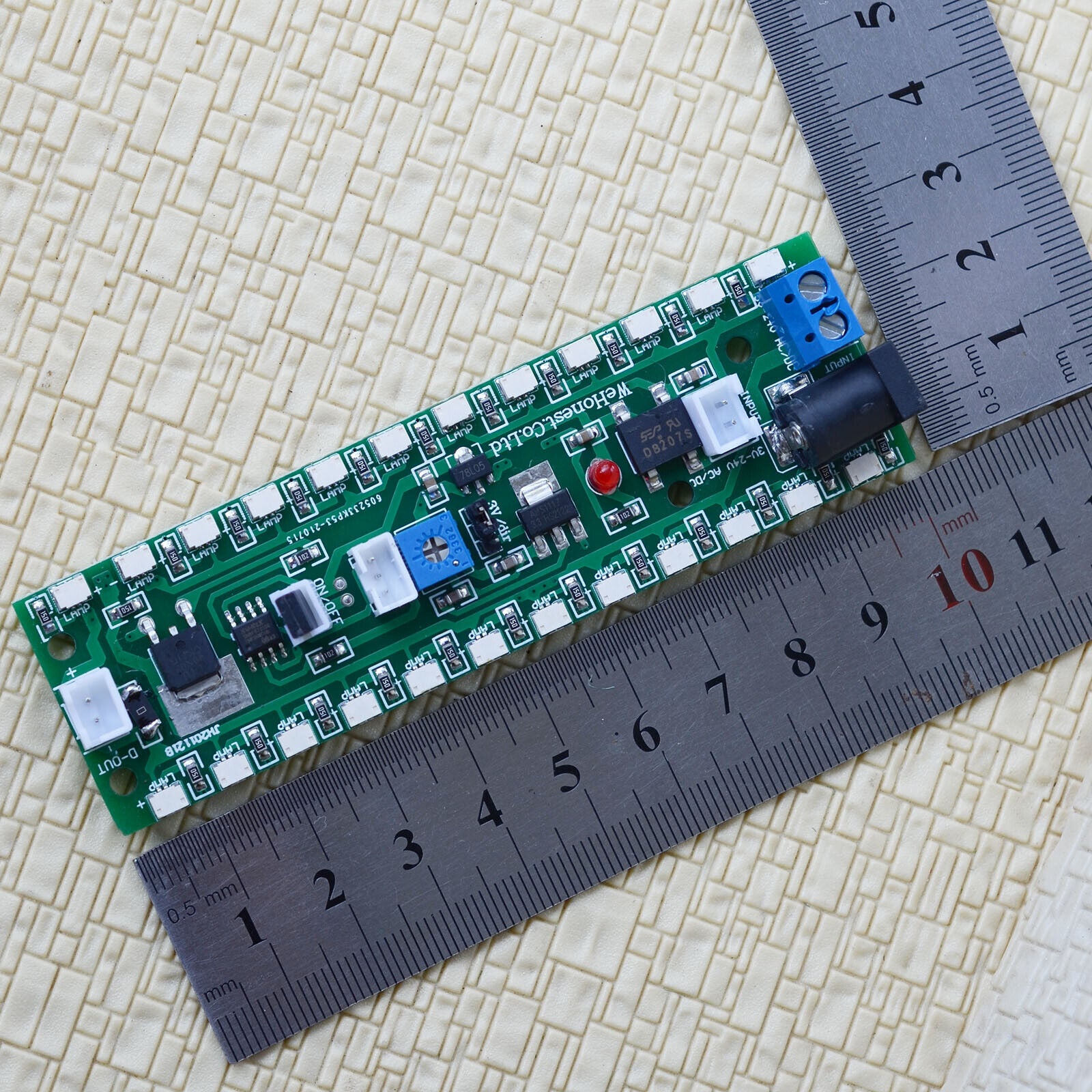

• Size: Please check it from the above photo.
• Reference Scale: Suitable for all layouts.
• Operating Voltage: 3V to 24V AC or DC.
Package included:
• 1 x distribution board #DB08
• 1 x expanding wire
• screws and stands for installation

• Attention: No wires come with this board, you must buy them via separate listings, some of my lights are prewired these JST0.8 connectors and ready to use with this board. you may message me if you are interested in some lights that shall be added to listings.
