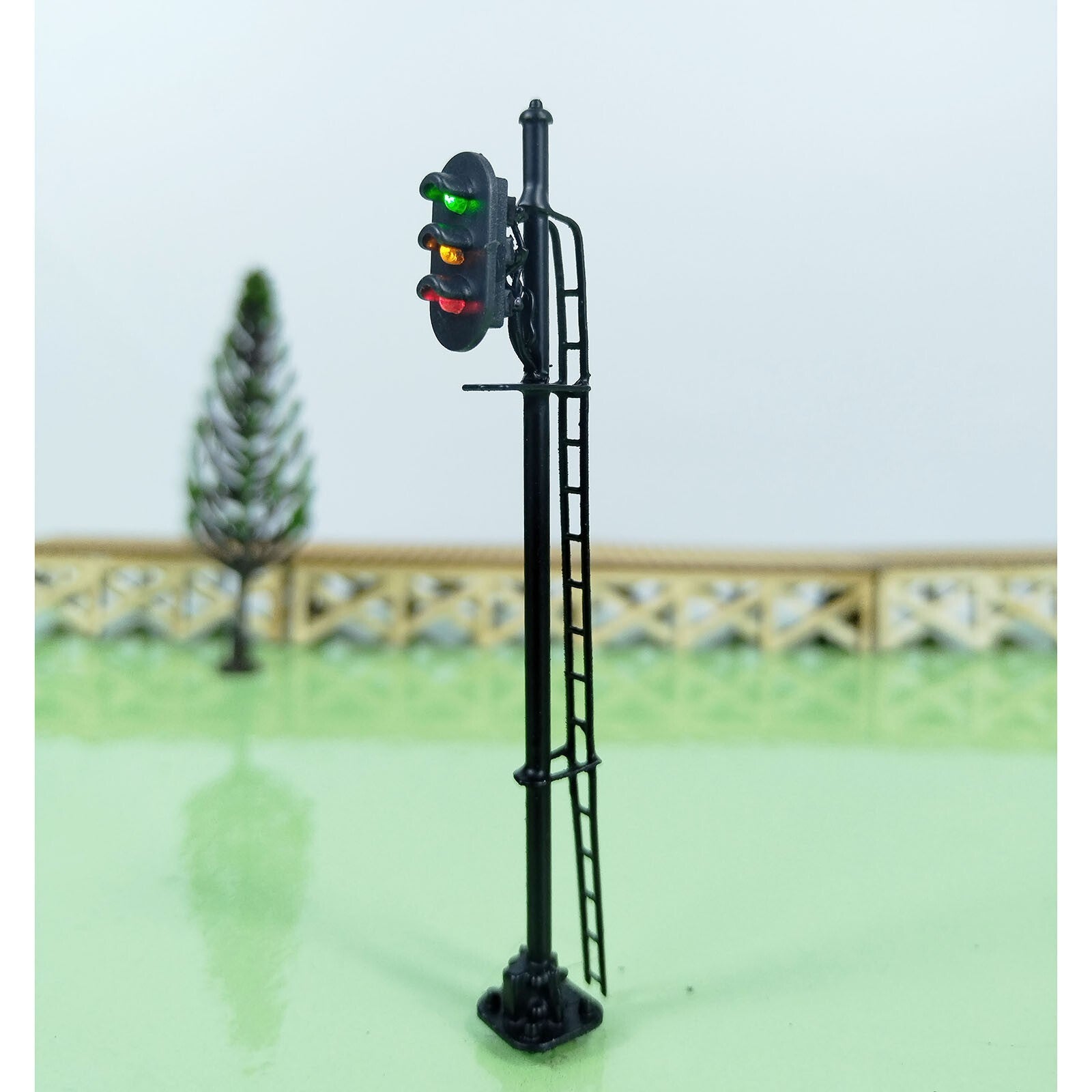

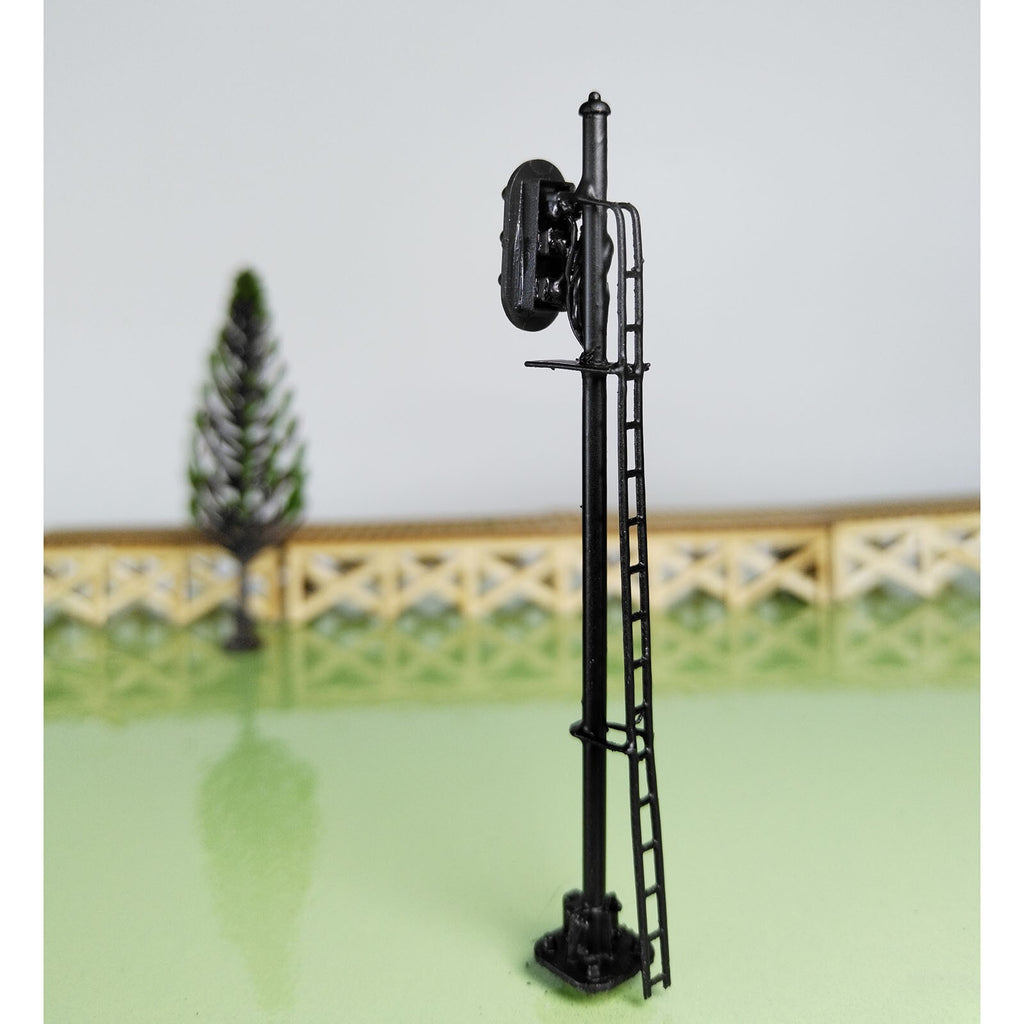

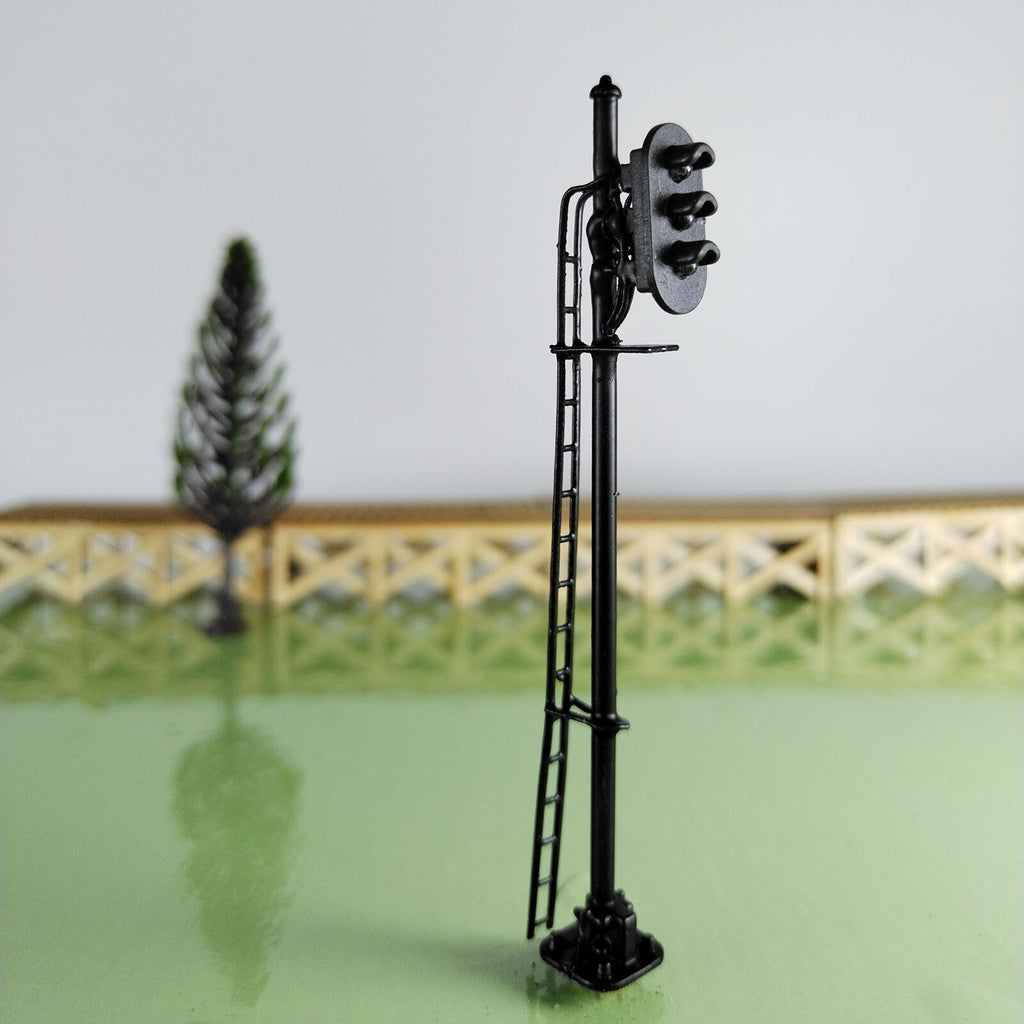

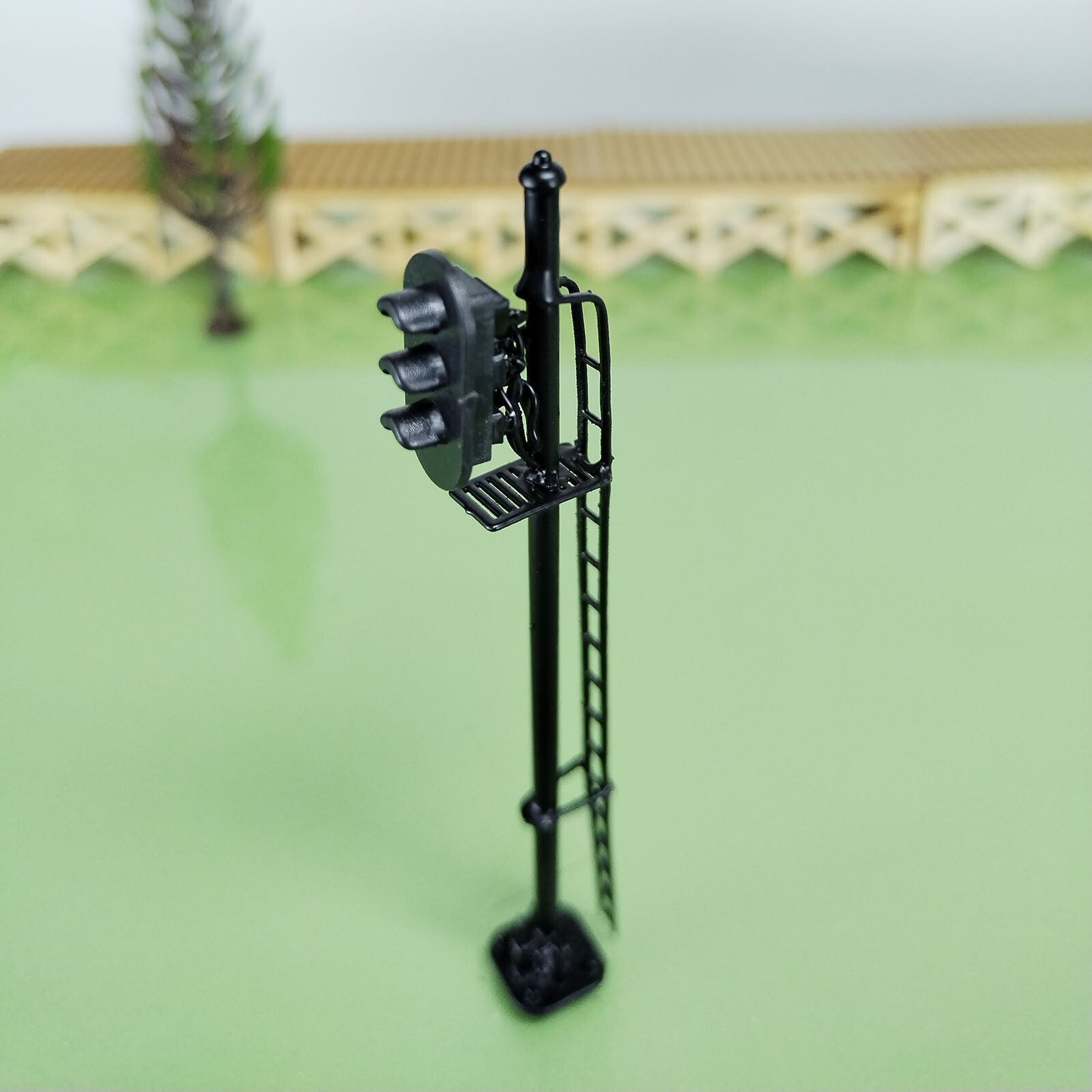

1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK
1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK
1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK
1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK
1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK
Roll over image to zoom in Click on image to zoom
1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK

1 x HO scale model railroad 3 aspects block signal LED 3 colors light #K03SgBK

WeHonest Model
Price:
$9.99 USD

Description

Store Categories
Why Buy From us
price for 1 complete signal ( common anode )
Items Description
  • 2mm clear LEDs made
  • one target may show Green/Yellow/Red light independently.
  • 4 wires for each target, the black wire is Common Anode wire, the color wires are cathode wires. ( message me right after payment if you need Common Cathode signal )
  • target position: in the middle ( default ), or please message me right after payment if you need the ladder on left or right side )

Specifications:

  • Brand: WeHonest Model.

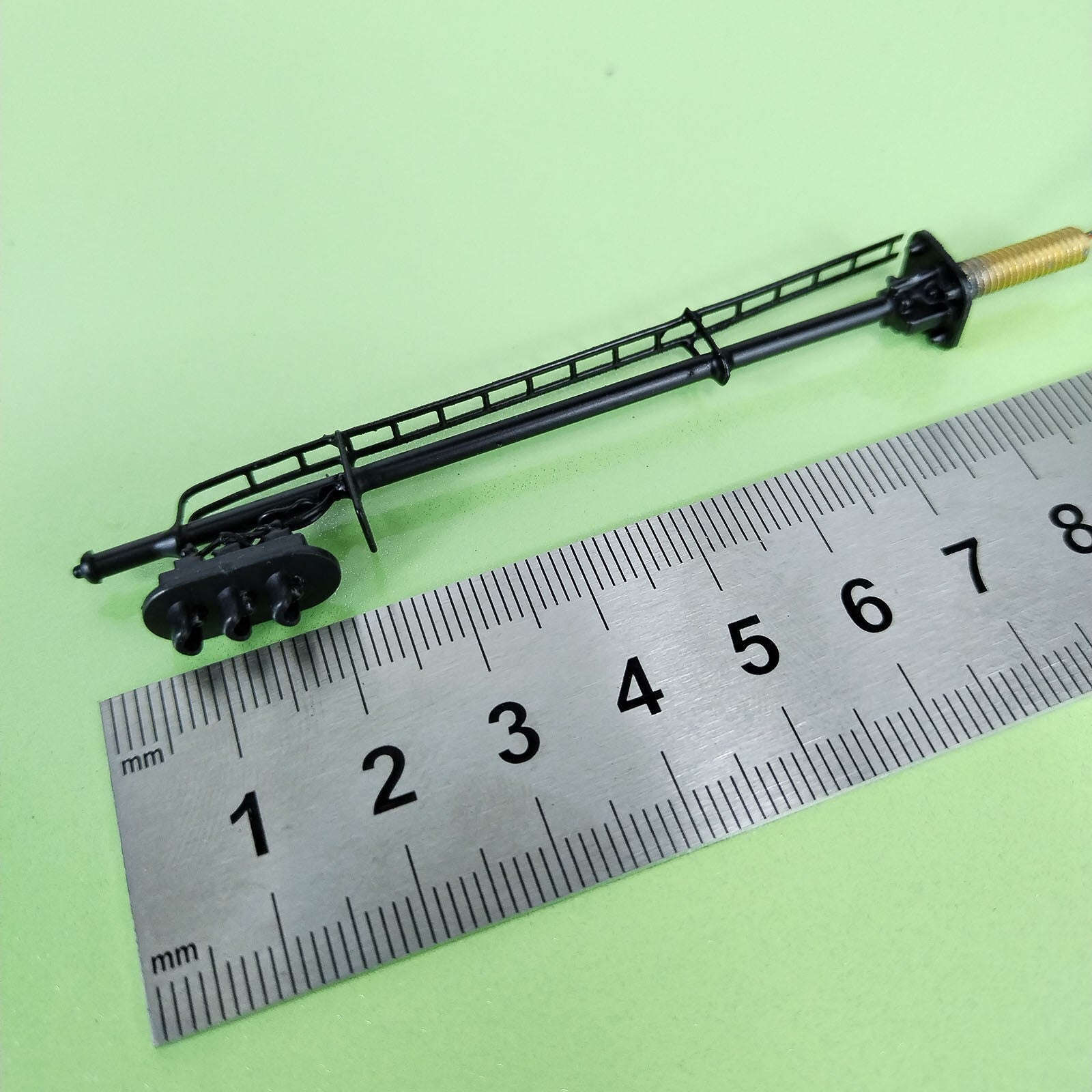

  • Size: Please check it from the above photo.
  • Reference Scale: Suitable for OO/HO scale layouts.
  • Operating Voltage: 3V DC only.
  • ( do NOT use it on 12V DC directly, must wire a 620 ohm resistor with the black wire if use on 12V DC )
  • Operating Current for each light: 20mA.
  • Material: brass

Package included:

  • 1 x complete common anode signal
  • 1 x 620 ohm resistor for 12V/16V DC use
to control it manually or automatically by train, buy the following product:

    1 x model train detector automatic signal controller crossing system trigger etc           Control the Signals etc... automatically by trains, Delay Switches Circuit Board        10 pcs Slide Switch 4 positions for signal control, 3 Aspests Signal Controller



    click the above small photo and use the link to buy them



    Goods Will Be Shipped after cleared payment, normally we may dispatch them within 24 hours, but sometimes, we need time to hand make them, in such case, we will dispatch them within 3 to 5 working days, ship to worldwide.

    Approximate Delivery Time

    Delivery Time Countries
    8 - 12 working Days
    10 - 15 working Days
    15 - 25 working Days
    		United States
    UK, australia, Canada, europe
    other countrys
    We accept payments by Paypal only. Payment should be made within 7 days.
    free returns within 30 days: you may return the items(s) if you receive them defectived within 30 days at our shipping cost, we will send you replacements or money back. But please kindly inform us first before sending them back.
    we've been specialized in Model Train Accessories since 2004, wholesale welcome.
    We're glad to answer any questions you have. Please send us message through eBay and we will respond within 24 hours (weekend excluded).
