1 set grade crossing signal + automatic controller by train detector auto flash

1 set grade crossing signal + automatic controller by train detector auto flash

$34.99 USD
$34.99 USD
Sale Sold out
Store Categories
Why Buy From us
1 set Auto Control system by IR sensors
with flasher board and signals
Items Description
  • Drive by 6V to 24V AC/DC transformer ( Not Include ), or optional 3V DC input.

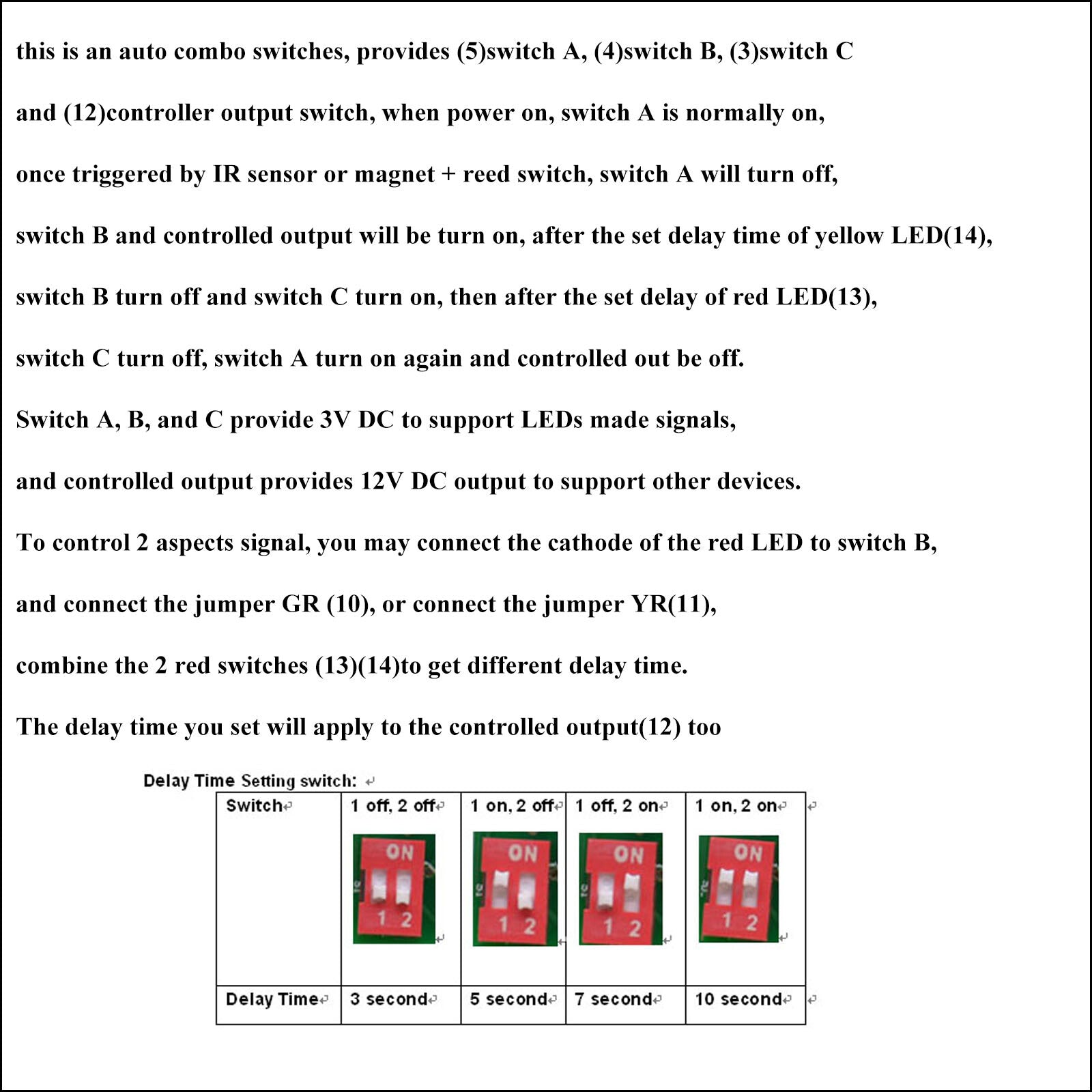

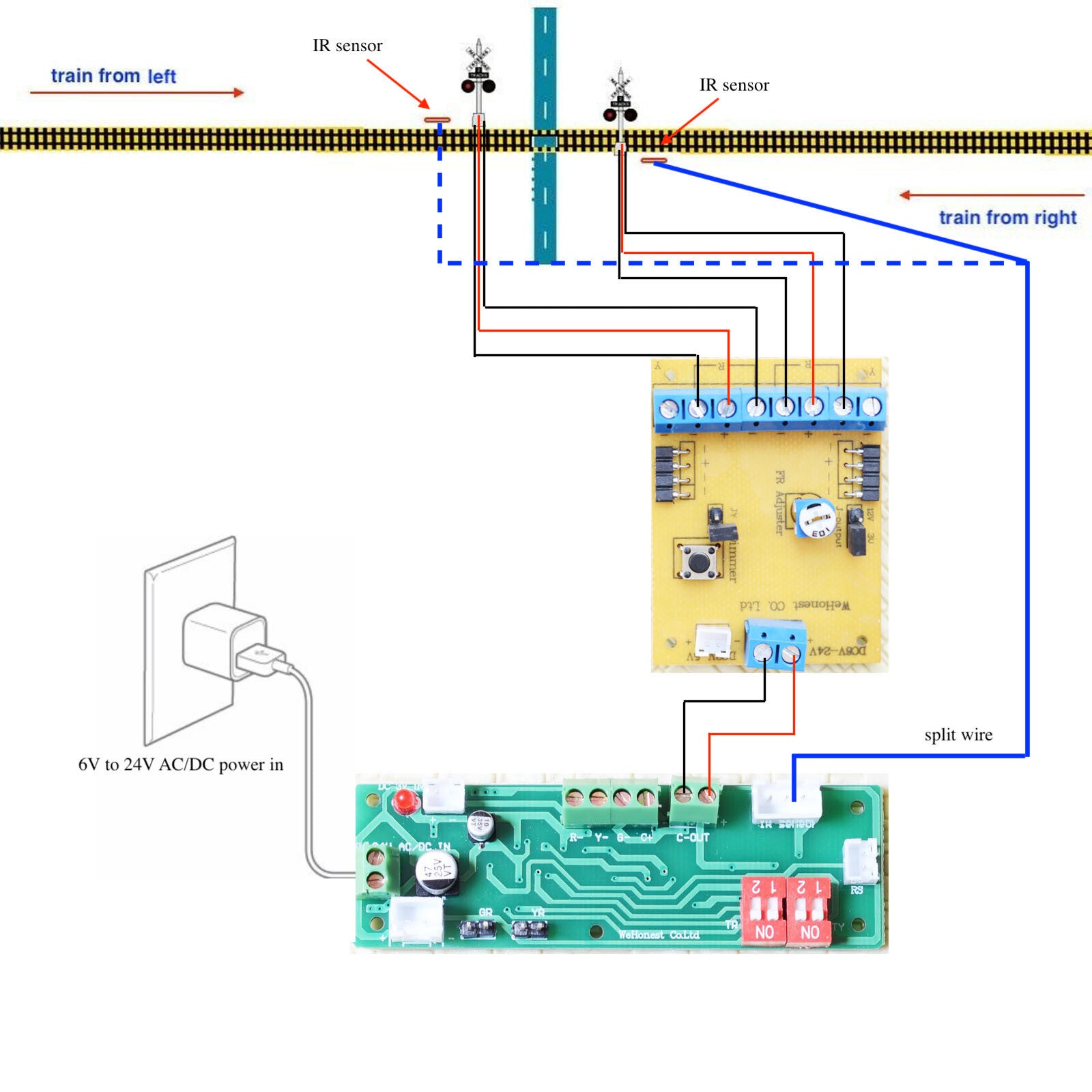

    when trains trigger the IR sensor, the crossing signals begin to flash, after the set delay time, stop flash. Delay time can be 3, 5, 6, 7, 10, 12, 17 or 20 seconds, the delay time is fixed once set, no matter how long a     train is, it will run same delay time. suitable for layouts with trains at similar length.

    • Specifications:

    • Brand: WeHonest Model.
    • Reference Scale: Suitable all scale layouts.
    • Operating Voltage: 6V to 24V AV/DC.
    • boards mounted on a ABS plat board and are prewired, ready to use upon arrival
    • default signals: will come with 2 of the above default HO signals, you may replace them for other signals in my store, just inform me via the note when pay

    Package included:

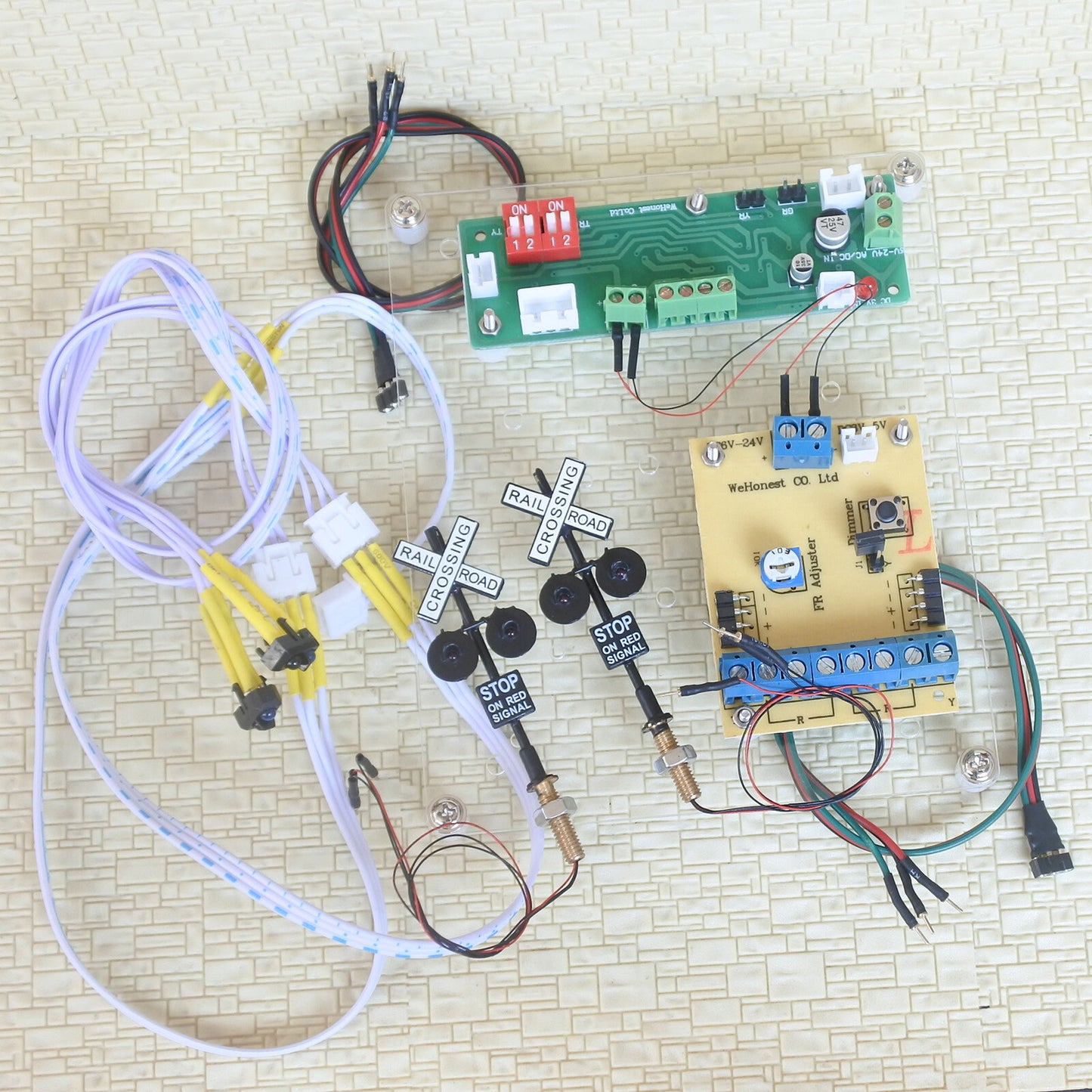

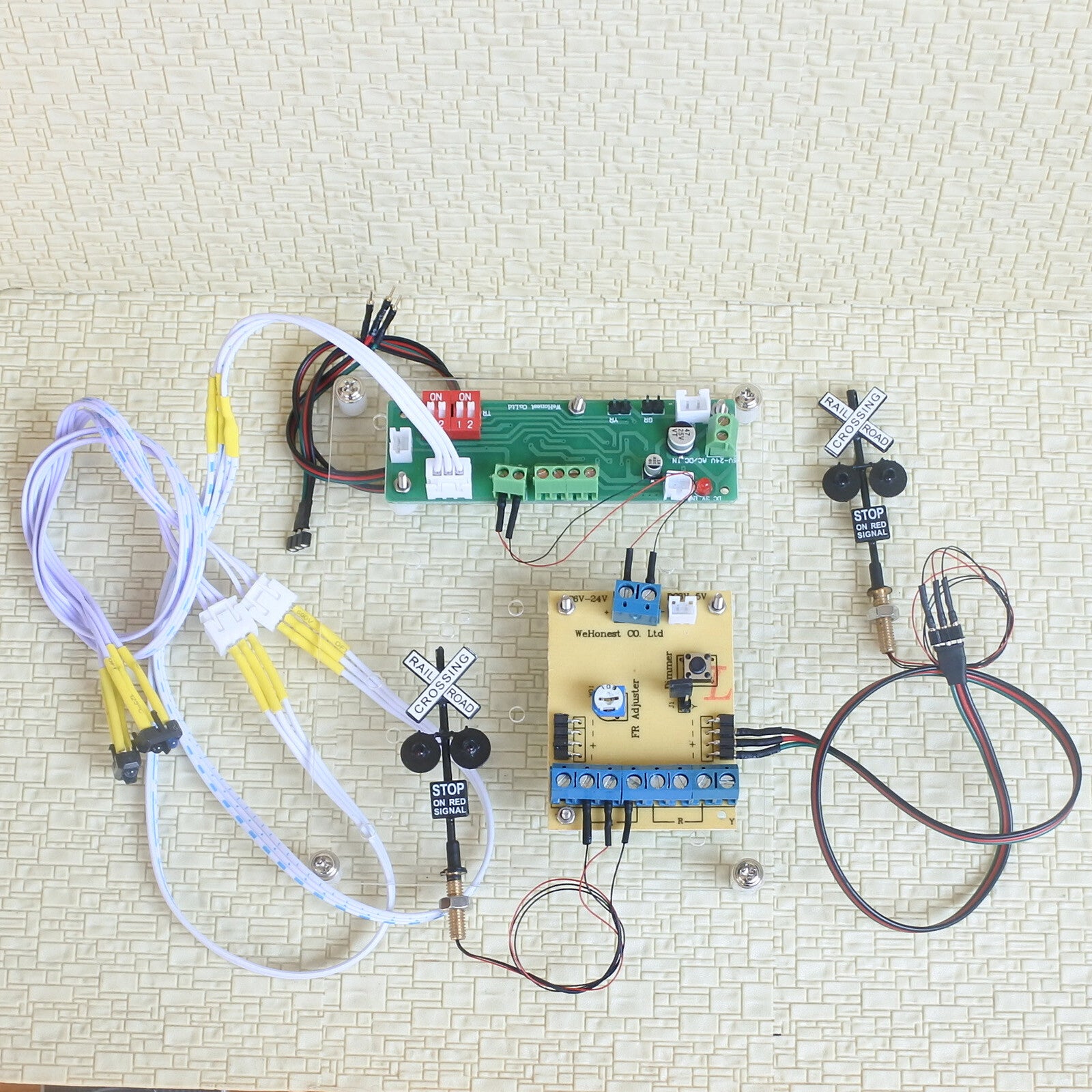

    • 2 x signals, 1 x delay circuit board, 1 x flasher board, 2 x IR sensors, 1 x split wire, 2 x signal extending wires

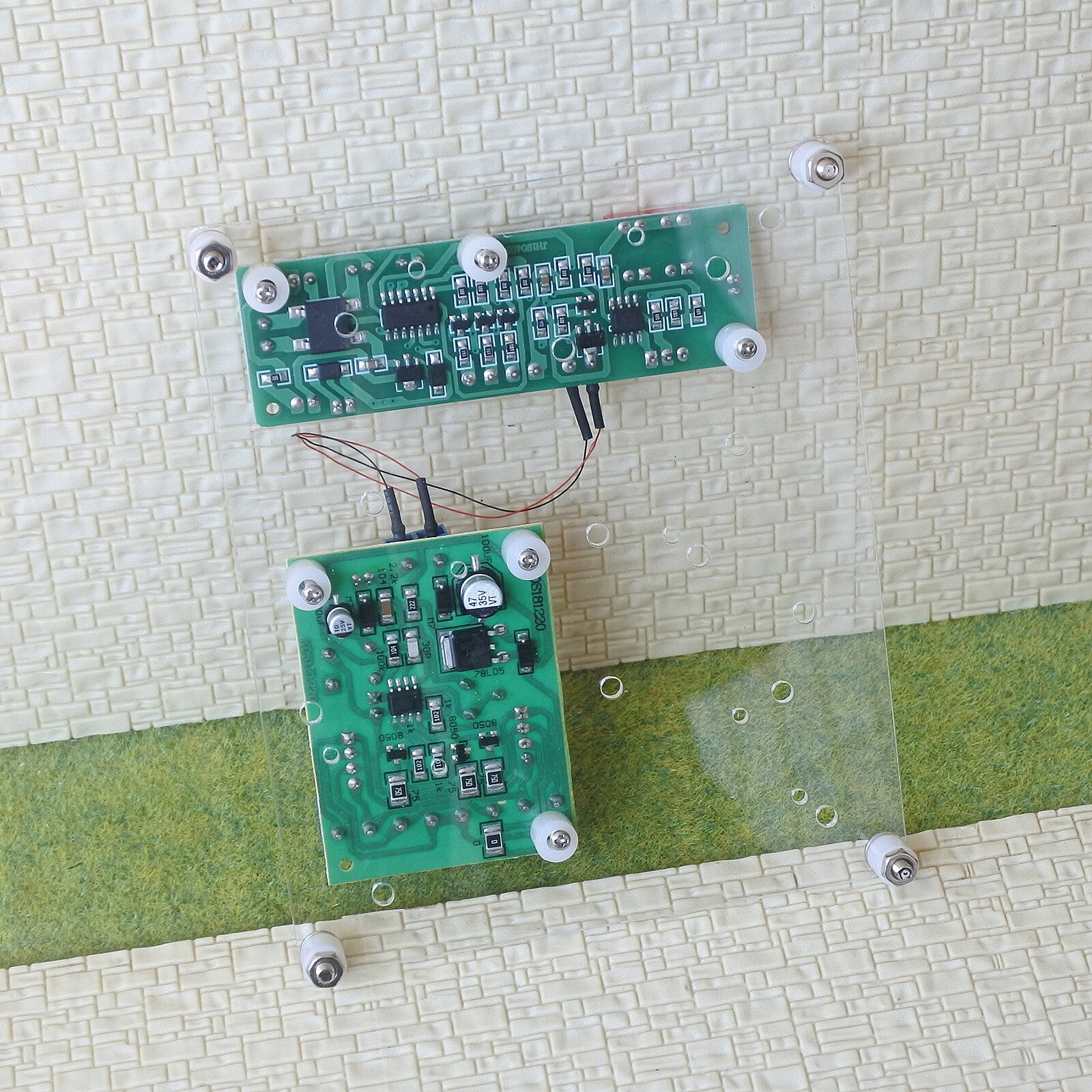

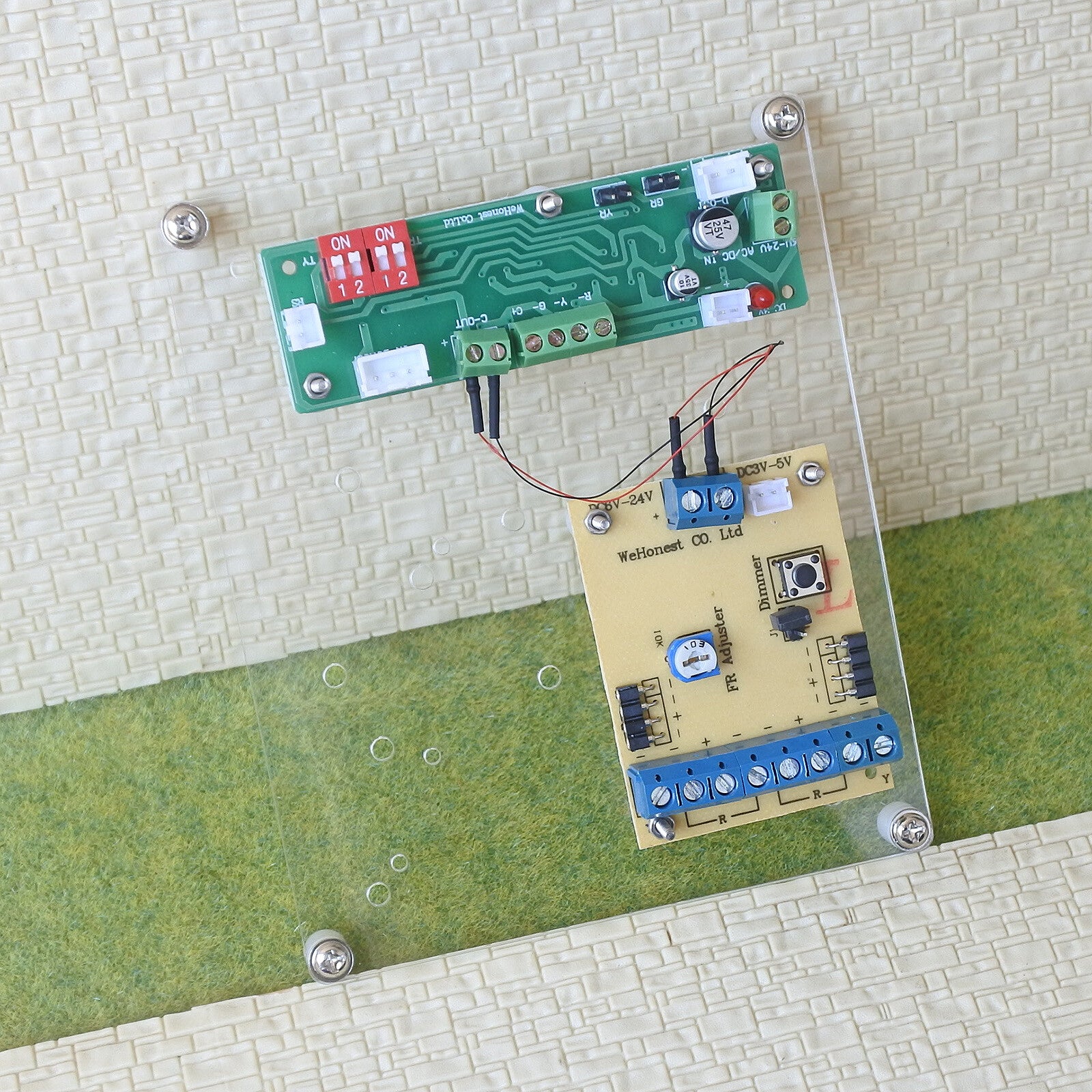

    • boards are mounted on a 12.5cm x 12.5cm Acrylic board by screws
    • with metal screw base for easy installation


    they can be lighted automatically when  a train pass by and the signals will flash alternatively

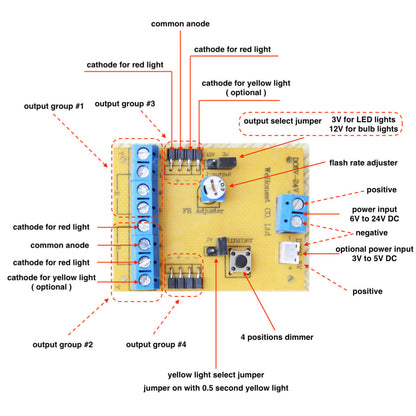

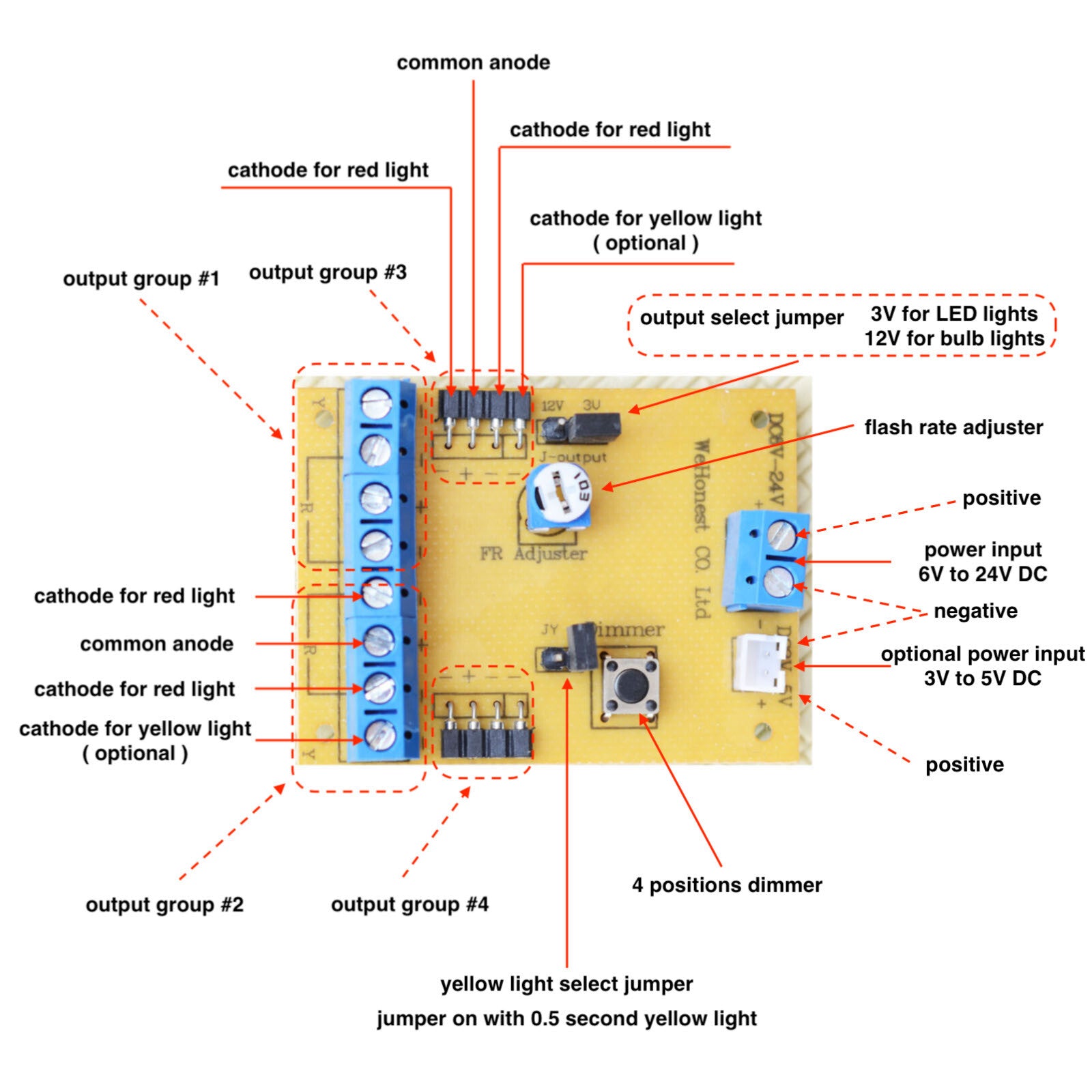

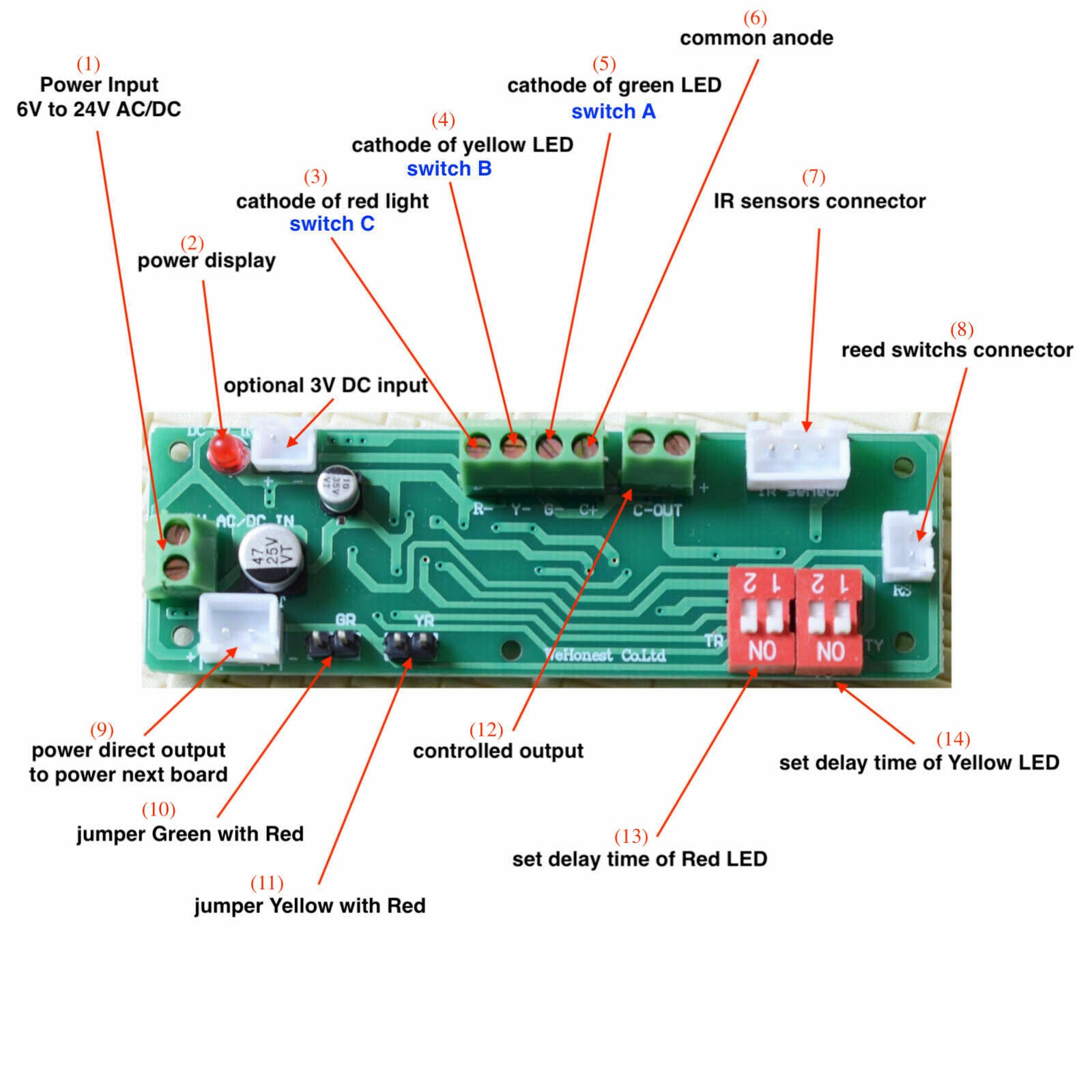

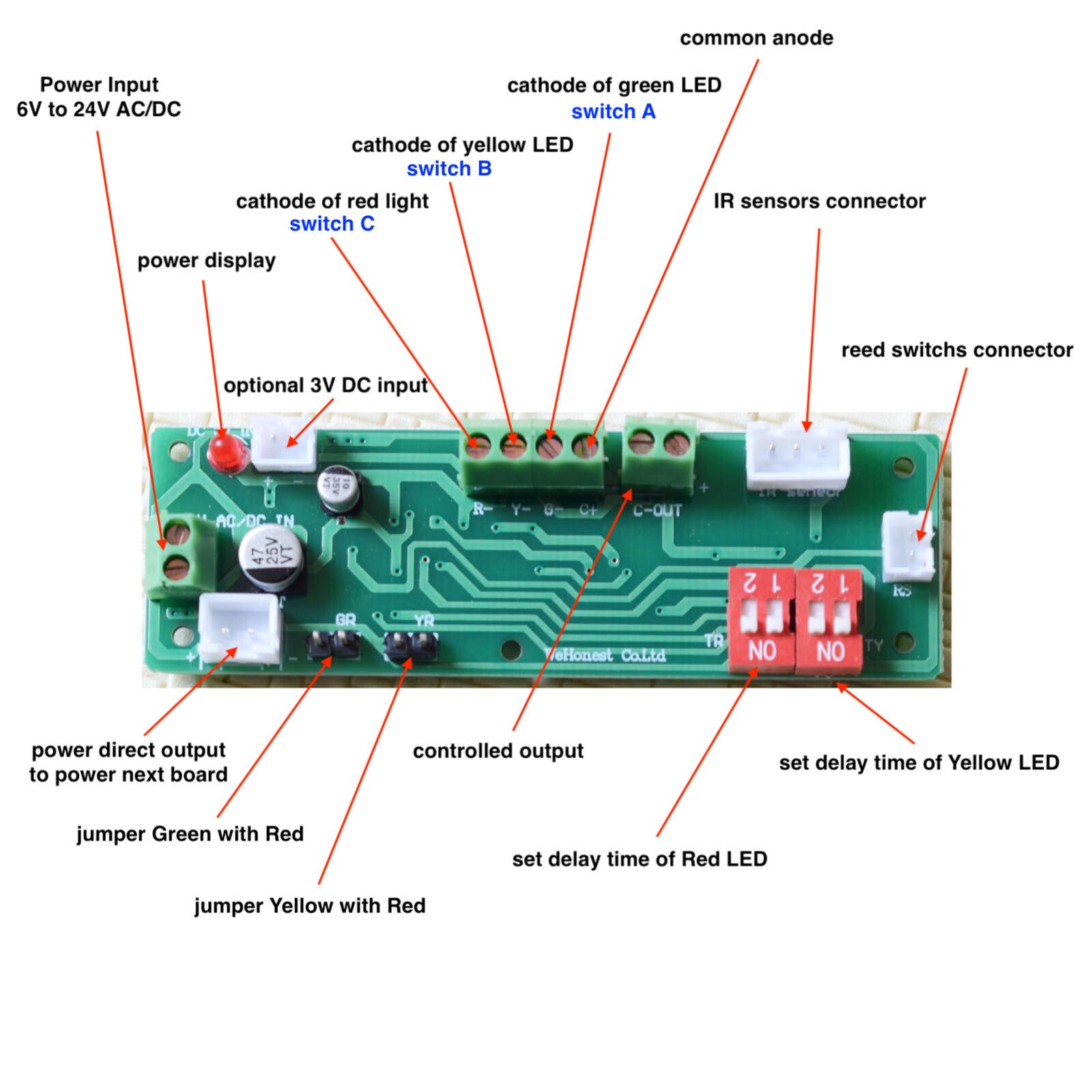

                                Control the Signals etc... automatically by trains, Delay Switches Circuit Board  1 x crossing signal circuit board flasher Alternately dimmer blink rate adjuster


    to learn more about the related items, you may click the above photos to check the instructions


    related items you may need

    1 x US standard Transformer 12V DC Adaptor Power Supply for HO N street Lights
    1 x prewired 1 meter IR sensor train detector for signal controller master board     1 x TRANSFORMER POWER CORD & PLUG for DC socket pure copper 5.5mm x 2.5mm 22AWG   1 x prewired IR sensors train detector for block signal controller master board

                                  1 x trackside IR sensors train detector for block signal controller master board        1 x trackside enhenced IR sensors train detector block signal controller trigger
    1 x model railway automatic spur rail station stop shuttle module slave board


    1 x extending wire 1m with connector Master Board signal controller IR sensor    1 x one join two IR sensor split wire with connector for block signal controller


    1 x one join two IR sensor split wire with connector for block signal controller
    1 x one join two IR sensor split wire connector 1m for block signal controller
